The flexible wood shredder for cabinet makers or carpenters
Cutting system deployed a thousand times over
Homogeneous wood chip quality
Customized system solutions
Rated capacity: 24.8 - 29.5 hp | 18.5 - 22 kW
Feed opening: 27.6" x 42" | 700 x 1.065 mm
Fraction sizes (based on the screen): 0.6" - 1.6" | 15 - 40 mm
Maximum throughput capacity: 6 srm/h

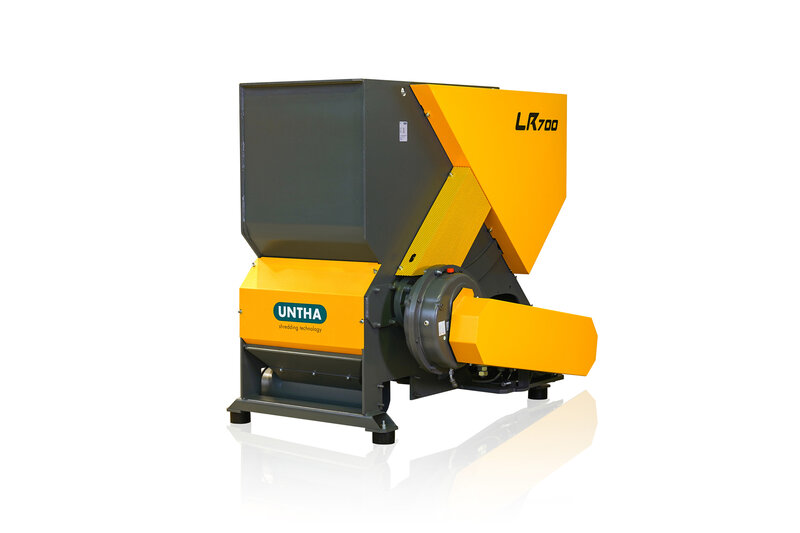

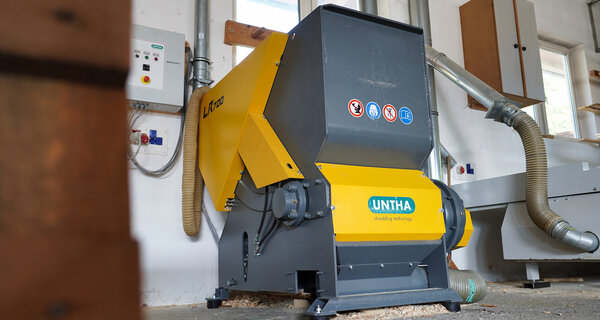

The LR700 wood shredder is the compact and universally applicable shredder system from the LR series. It is designed for medium-high throughput and long operating hours. This wood shredder for cabinet makers and carpenters combines great flexibility with a compact design. The shredder is especially suitable for companies wanting to shred a larger quantity and sizes of waste wood per week. The LR700 single shaft shredder can be customized to cater to different carpenter and woodworking specifications, depending on your company needs.
The homogeneous wood chip end product produced by the shredder is ideal for incineration in a wood chip heating system or for manufacturing wood briquettes. The LR700 wood shredder produces high-quality wood chips that are ideal for recycling accumulated waste wood.
The high-torque machine drive system provides an enormous throughput in combination with the high pusher speed. Together with the tried and trusted UNTHA cutting system, the powerful and wear-free swing pusher ensures reliable shredding of different types and quantities of wood. The shredder's robust machine frame and its high-quality components also guarantee the machine's long lifespan.
Thanks to the offset rotor bearing, the gear damping, and the reliable cutting system, the wood shredder is low maintenance and has a long service life. The intelligent drive control shuts the shredder motor down automatically in case foreign objects enter the machine. In addition, the shredder is equipped with an automatic reverse function to prevent motor overload.
Energy-efficient operation is particularly important for wood shredders designed to run over longer operating periods. This is why the LR700 shredder features a reliable and highly efficient cutting system which has been tried and tested a thousand times over. It will shred your waste wood with great efficiency even at low drive capacity. In addition, the motor shuts down automatically if no wood is fed into the machine for more than three minutes. This saves energy whilst simultaneously reducing operating costs.
The LR700 shredder can shred the following types of wood: Solid wood, logs, chipboard, veneers, MDF sheets, cardboard, pallets, bark, and much more.
Each of our wood shredders is customized to your wood working needs. The single shaft shredders by UNTHA can also be equipped with a metal separator, a discharge screw, a conveyor belt, or a customized hopper. We offer comprehensive, single-source solutions!
Test our shredders in the UNTHA test centre! Try our shredders in real-life conditions using your own materials. This way, you can make sure that we fulfil your requirements 100%.
Depending on your requirements, we offer custom-made accessories for this shredder.
Shredding residual timber with nails or screws is no problem for our shredders. Pipe magnets are commonly used in extraction situations to separate metal pieces from the wood. We can offer you different pipe magnets depending on your application.
0.6" - 1.6"
18" - 38"
2 x 7 - 2 x 15 hp
0.5" - 1.2"
15 - 25 hp
